From desired size to cutting file in just minutes
Create custom shapes, enter the measurements, preview the project and export the file for your CNC production.
PREVIEW 2DDimensions
How it works
In 4 simple steps you have your file ready for production
Choose the model
Bases, tops, panels and furniture
Enter measurements
Dimensions in millimeters, parametric
Review the preview
Real-time 2D and 3D visualization
Download the DXF
Clean vector file in real scale
Available generators
Choose a model and customize your project measurements

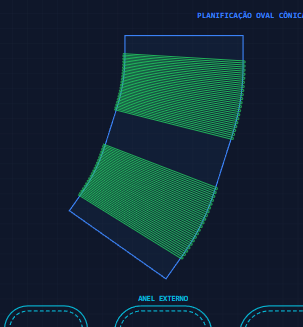

Pé cônico
Base cônica planificada com anéis e zig-zag para encaixe CNC.
Pé feijão
Base orgânica de feijão com planificação e anéis para corte CNC.
Base Zeta
Leque paramétrico com ripas trapezoidais em ângulos calculados para montagem CNC.
Canto curvo duplo
Canto curvo duplo com planificação e encaixes para corte CNC.
Canto curvo padrão
Canto curvo com planificação e zig-zag para encaixe em corte CNC.
Painel Paramétrico
Painéis ripados com ondas e profundidade variável para decoração.
From project to produced piece
See how easy it is to turn a project into reality

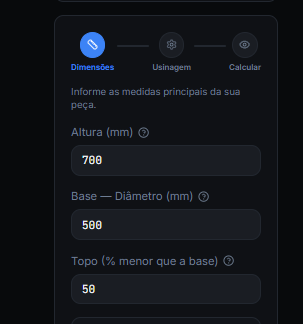

System configuration
Enter the measurements and adjust your project parameters

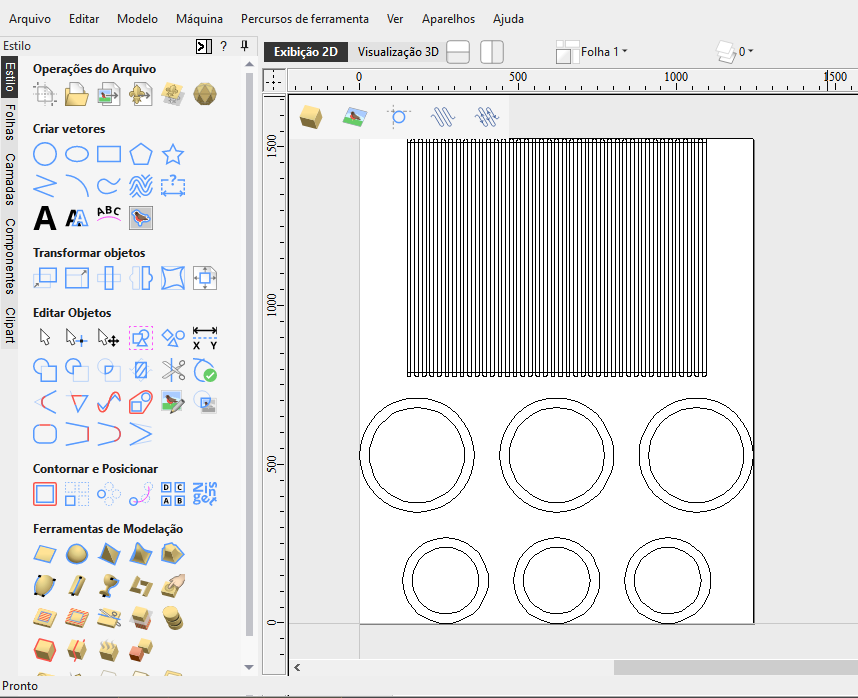

Vector file
Export clean DXF in real scale to your CAM software

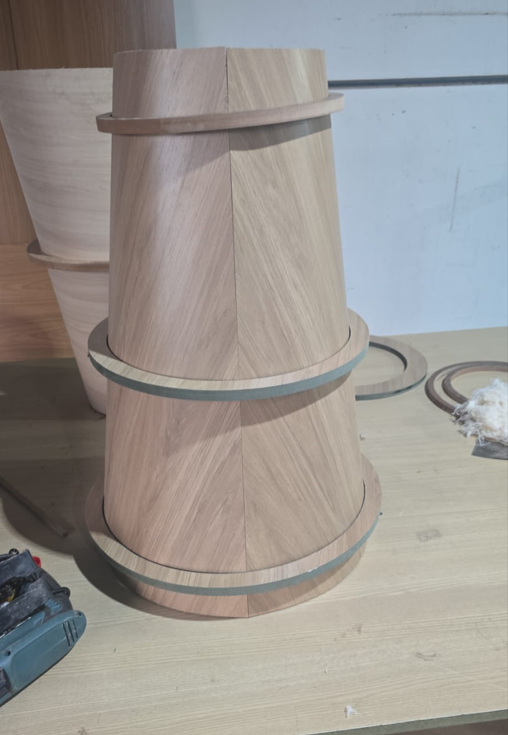

Produced piece
Load it on your CNC and produce with millimeter precision
Why use NL CNC
Measurements in millimeters
Millimeter precision guaranteed on all projects
DXF files
Universal vector format, clean and in real scale
CAM software compatible
Aspire, VCarve, Fusion 360, CorelDRAW and more
Time and precision gain
From project to ready file in less than 5 minutes
